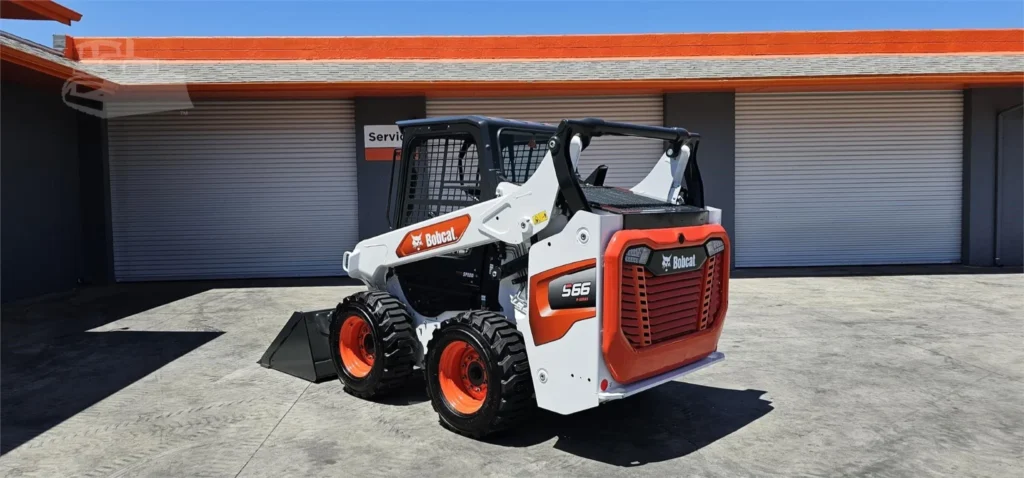

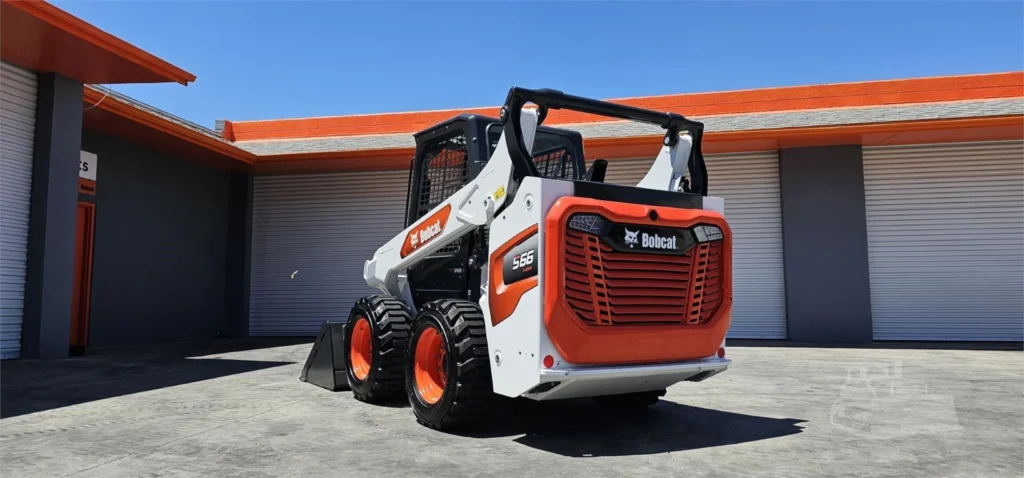

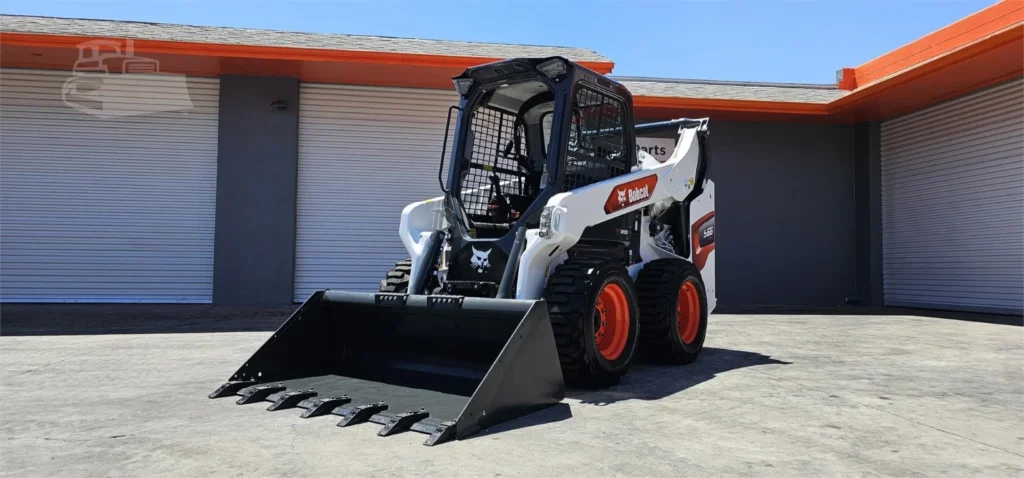

2024 Bobcat S66
View All Photos
.
Description
General Information:
Condition: New
Year: 2024
Make: Bobcat
Model: S66
Hours: 1
Serial: B4SA23963
Cabin Features: Open Cab with Adjustable Vinyl Suspension Seat
Attachments Included:
68″ Tooth Bucket
Engine Details:
Engine Type: Bobcat 2.4L V2 Turbocharged Diesel
Engine Power: 74 HP (Gross: 75 HP, Net: 70.5 HP)
Displacement: 2.4L (146 in³)
Cylinders: 4 (Inline-4)
Fuel Type: Diesel
Cooling System: Liquid-Cooled (2.8 gal capacity)
General Information:
Condition: New
Year: 2024
Make: Bobcat
Model: S66
Hours: 1
Serial: B4SA23963
Cabin Features: Open Cab with Adjustable Vinyl Suspension Seat
Attachments Included:
68″ Tooth Bucket
Engine Details:
Engine Type: Bobcat 2.4L V2 Turbocharged Diesel
Engine Power: 74 HP (Gross: 75 HP, Net: 70.5 HP)
Displacement: 2.4L (146 in³)
Cylinders: 4 (Inline-4)
Fuel Type: Diesel
Cooling System: Liquid-Cooled (2.8 gal capacity)
Drive Type: 4WD
Transmission: Hydrostatic
Torque: 196.3 ft·lbf @ 1,800 RPM
Maximum Governed RPM: 2,600 RPM
Starter Horsepower: 3.6 HP
Emissions Tier: USA Tier 4
Features:
Hydrostatic Transmission with Two-Speed Travel (7.4 mph low, 11 mph high)
Selectable Joystick Control (SJC) with Horsepower Management for precise operation
Versatility Package (Item #M0347-P11-C03):
Open Cab with Adjustable Vinyl Suspension Seat
Power Bob-Tach for quick attachment swaps
5″ Display for machine monitoring
Standard LED Lights for visibility
Two-Speed Travel and 7-Pin Attachment Control
Performance Specs:
Rated Operating Capacity: 2,400 lbs (2,550 lbs with 200 lb counterweight)
Tipping Load: 4,800 lbs
Bucket Breakout Force: 4,730 lbf
Lift Breakout Force: 5,378 lbf
Operating Weight: 7,154 lbs
Lift Arm Path: Vertical
Hydraulic System:
Standard Flow: 17.6 gal/min
High Flow: 26.9 gal/min
System Pressure: 3,500 psi
Cycle Times: Raise (3.8 s), Lower (2.2 s), Dump (2.3 s), Rollback (1.6 s)
Dimensions:
Length (with 68″ Bucket): 135 in
Length (without Attachment): 107 in
Width (with Bucket): 68 in
Width (without Bucket): 67 in
Height: 80.5 in
Height to Bucket Hinge Pin: 120 in
Reach @ Max Height: 34.2 in
Turning Radius: 80.1 in
Wheelbase: 44.6 in
Ground Clearance: 7.5 in
Auxiliary Hydraulics with Thumb Proportional Control and Continuous Flow Selector
Fuel Capacity: 28.3 gal
Tires: 100% Remaining (Bobcat Super Float standard)
This 2024 Bobcat S66 skid-steer loader, fresh from the Ventura location, is a brand-new powerhouse with just 1 hour on the clock. Featuring a 74 HP Bobcat turbocharged diesel engine and a vertical-lift path, it delivers a 2,400 lb operating capacity (2,550 lb with counterweight) and exceptional breakout forces. The Versatility Package includes an open cab, Power Bob-Tach, SJC controls, and a 5″ display, paired with a 68″ tooth bucket for immediate productivity. With two-speed travel (up to 11 mph), high-flow hydraulics, and a durable design, this S66 is engineered for tough jobs in tight spaces, offering precision and minimal ground disturbance—ready to work straight out of the gate!
